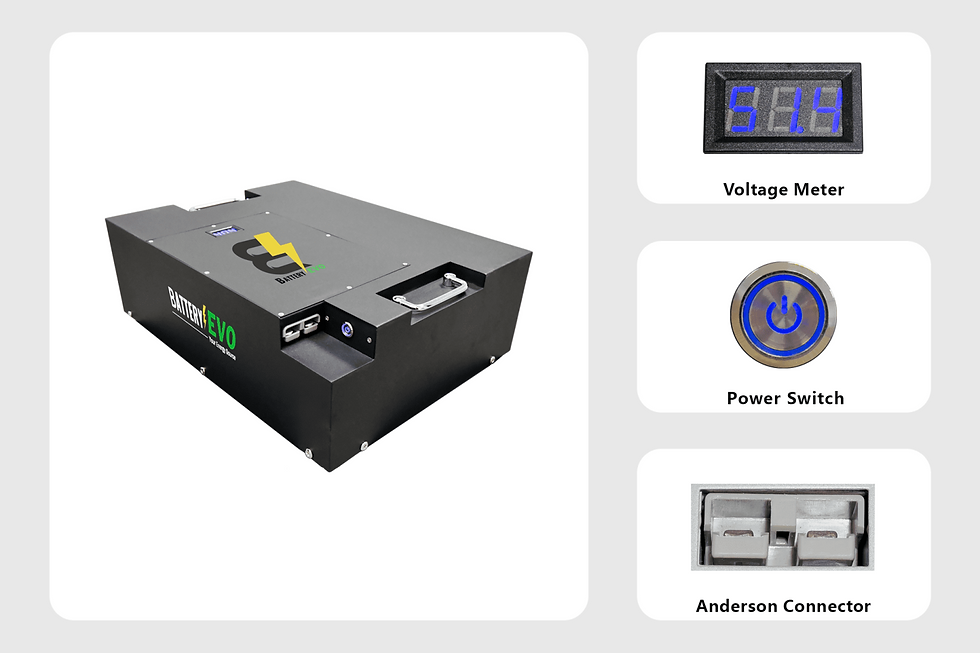

36V 13 kWh Battery 2X Kit

Carefully designed to serve forklifts, industrial applications, and 36V golf carts.

In a sleek and streamlined shape, we’ve cleverly packed 6.5 kWh of capacity using NMC cells. Our advanced BMS, featuring an exclusive Triple Safety Redundancy system, adds to this innovation.

Warehouses all over are discovering the amazing benefits of switching their forklift fleets from Lead Acid Battery to lithium-ion technology. The advantages are clear—more space, less weight, cost savings, no more maintenance headaches, and significantly faster charging times. This battery is designed as a complete and easy-to-use solution, crafted to transform your forklift experience and bring noticeable improvements.

Whether it’s your golf cart, forklift fleet, or your entire warehouse, you can elevate them all with the versatile and powerful 36V

200%
TWICE THE POWER
OF TRADITIONAL BATTERIES
4X
CYCLE-LIFE
1/3
THE WEIGHT AND SPACE
100%
SAFE & RELIABLE
TECH SPEC

System Voltage: 36V
Nominal Voltage: 36.0V
Chemistry: NMC
kWh Capacity: 6.5kWh
Ah Capacity: 180Ah
Charging Voltage: 41V - 42V
Max Charge Voltage: 42V
Operating Voltage Range: 30V - 42V
Suggested Low Voltage Cutoff: 30V - 36V
Cell Configuration: 10S3P
Max Continuous Discharge Current: 150A
Max Continuous Power: 5400W
Max Discharge Peak Current: 300A (5 seconds)
Max Charge Current: 150A
Charge Temperature Range: -20°C (-4°F) / 55°C (131°F)
Discharge Temperature Range: -20°C (-4°F) / 55°C (131°F)
Optimal Discharge Temperature Range: 15°C (59°F) / 35°C (95°F)
Storage Temperature Range: -5°C (23°F) / 35°C (95°F) (Max 6 Months)
Weight: 100lbs (45.4kg)
Depth: 20.45in (519.4mm)
Width: 15.35in (389.9mm)
Height: 6.5in (165.1mm)
Safety Features: Fuse (300A) & Battery Management System (Over/Under Voltage, Over Current, & Over/Under Temperature Protections)
Max Connections: Up To (8) Parallel


2
6AWG 4FT BE175 to Ring Terminal Cable
6AWG 4FT BE175 to Ring Terminal Cable
3
48V 17A 110VAC Lithium Battery Charger
42V DC - 110 VAC - 17A Lithium Charger
1

24AWG 10FT Meter to Ring Terminal Cable
1
DC Meter
LED Percentage Capacity Meter - 10S NMC
1
Parallel Busbar
Parallel Busbar
